This article explores an end to end AI architecture designed to track and quantify marine ecosystem health during major coastal infrastructure projects.

Coastal construction projects present a massive challenge for environmental engineers. When dredging and building occur over a multi year timeline, the surrounding marine ecosystem is placed under immense stress. One of the most critical indicators of this ecosystem’s health is seagrass.

Seagrass meadows are the lungs of the ocean, but they are incredibly sensitive to changes in water quality. During a coastal construction project, environmental regulators mandate strict monitoring. The traditional approach involves marine ecologists diving into the water weekly, taking quadrat photos, writing observational notes, and eventually compiling monthly reports to assess the environmental impact.

This manual process is slow, highly subjective, and prone to human error. The goal of this article is to design an automated AI pipeline that processes multimodal field data to separate natural seasonal variations from actual construction induced damage.

1. Problem Understanding and Domain Translation

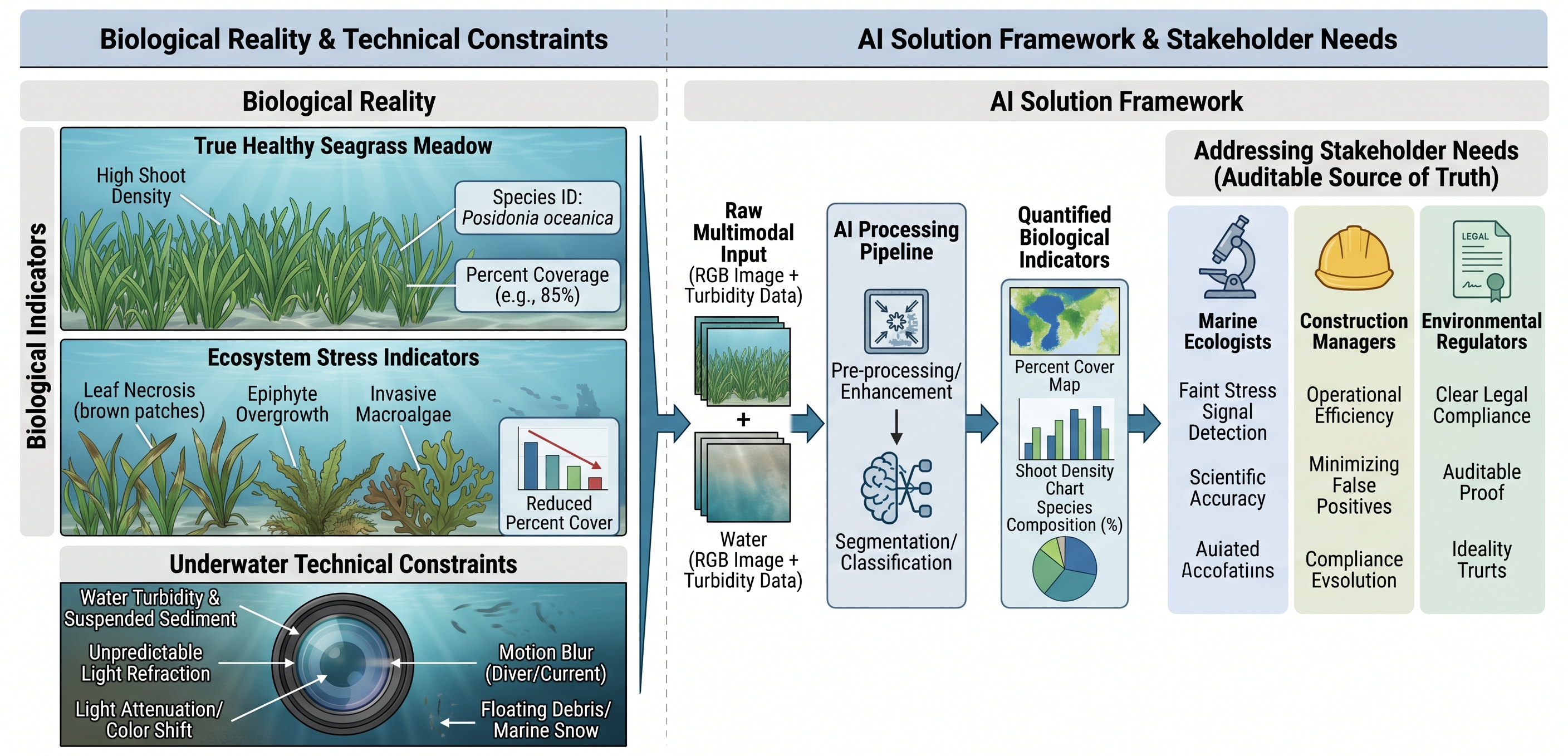

Before we write any code or select a model, we need to translate the biological reality into a mathematical one. The real world challenge is establishing a reliable and objective system to track marine ecosystem health during ongoing coastal construction.

We are balancing three primary stakeholders with often conflicting priorities. Marine ecologists demand scientific accuracy to detect faint signals of ecological stress. Construction managers prioritize operational efficiency, knowing that a false positive could unnecessarily shut down a multimillion dollar dredging operation. Meanwhile, environmental regulators require clear, auditable proof of strict legal compliance. Our AI system must serve as an unassailable source of truth that satisfies all three parties.

To achieve this, we must precisely define what seagrass growth actually means. A naive computer vision approach might simply count green pixels in an image, but in a marine environment, those pixels could easily be invasive macroalgae thriving on stirred up sediment. True ecological health requires quantifying a matrix of specific biological indicators. We must measure percent coverage to understand spatial extent, approximate shoot density to gauge the meadow’s robustness, and classify species distribution, since a sudden shift to weed species indicates a disturbed habitat. Furthermore, the system must recognize visible signs of biological stress, such as leaf necrosis or parasitic epiphytes. We are not just looking for plants; we are looking for symptoms.

The primary constraint governing this entire pipeline is the hostile underwater environment. Visual data collection is inherently flawed, heavily distorted by water turbidity, unpredictable light refraction, backscatter, and the physical drift of divers operating in active currents. We do not have the luxury of clean datasets. Yet, the demand for scientific accuracy remains non negotiable. The AI must be robust enough to filter out the chaotic noise of the ocean and extract the undeniable biological signal hidden beneath.

2. Data Understanding & Assumptions

Our current pipeline depends on weekly manual field surveys. Divers provide RGB quadrat photographs, which are standard top down images of a fixed seabed area, accompanied by qualitative observational notes. While this provides a biological baseline, it is fundamentally inadequate for a high stakes automated system.

We must confront the harsh reality of underwater computer vision. The visual data is inherently degraded. We are forced to account for severe light attenuation, extreme water turbidity, and significant visual noise from floating debris and marine snow. Furthermore, because divers are constantly battling ocean currents, the camera angles and distances are highly inconsistent. This geometric distortion wreaks havoc on standard image processing algorithms and must be mathematically corrected before any analysis begins.

To build a robust system, we must also actively address missing data layers. Relying solely on pixels is a mathematical dead end. Currently, we lack synchronized turbidity sensor readings and exact GPS coordinates for every photograph. I would mandate the integration of this physical hardware data. A turbidity reading provides the model with a quantifiable metric of visual distortion, allowing it to dynamically adjust its own confidence scores. Exact GPS coordinates allow us to map spatial degradation over time rather than just looking at isolated and unanchored images.

Finally, the entire mathematical validity of our impact analysis rests on one core assumption. We must establish and maintain an actively monitored control site that is geographically similar but completely isolated from the construction zone. Marine ecosystems are highly dynamic. Seagrass beds naturally expand and contract with seasonal temperature shifts and storm events. Without a pristine control site to establish a baseline of natural variation, it is statistically impossible to isolate the specific signal of construction induced damage from the background noise of the ocean.

3. Framing the AI Problem

To build a functional architecture, we must formally define the mathematical nature of our task. We can formalize this as a multimodal spatiotemporal problem.

We are not just looking at a single image in a vacuum. A standalone photograph of dead seagrass tells us absolutely nothing if we do not know where it was taken, when it was taken, or what the surrounding water conditions were at that exact moment. We are evaluating multiple types of disparate data (multimodal) anchored to specific GPS coordinates on the seabed (spatial) and tracking how the biological reality at those coordinates evolves over a multi year project timeline (temporal).

Let us break down the exact mapping function we need our AI pipeline to learn.

The inputs to our system are inherently unstructured and chaotic. We are feeding the model raw RGB image pixels, qualitative text notes from the divers detailing subjective observations like current strength or sediment type, and continuous environmental metadata such as depth and turbidity sensor readings.

The outputs, conversely, must be rigidly structured to serve our stakeholders and satisfy regulatory requirements. We need the system to generate quantitative percentage cover metrics, composite biological health indices, and automated time series anomaly alerts. These alerts must be calibrated to trigger instantly when the ecosystem shifts from natural seasonal variation into a state of sudden decline.

Essentially, the AI problem here is one of translation and compression. We must design a model pipeline that learns how to ingest a high dimensional, messy blend of vision, text, and sensor data, and mathematically distill it down into a clean and low dimensional dashboard of actionable ecological metrics.

4. Solution Design and the Modular Pipeline

A robust AI system in environmental engineering requires strict system thinking. We cannot just throw raw data into a black box neural network and expect regulators to accept the output. The pipeline must be highly modular so that data flows transparently from the ocean floor to the final report. If an environmental agency questions a specific drop in seagrass density, we must have the ability to trace that exact metric back through our system directly to the raw underwater photograph.

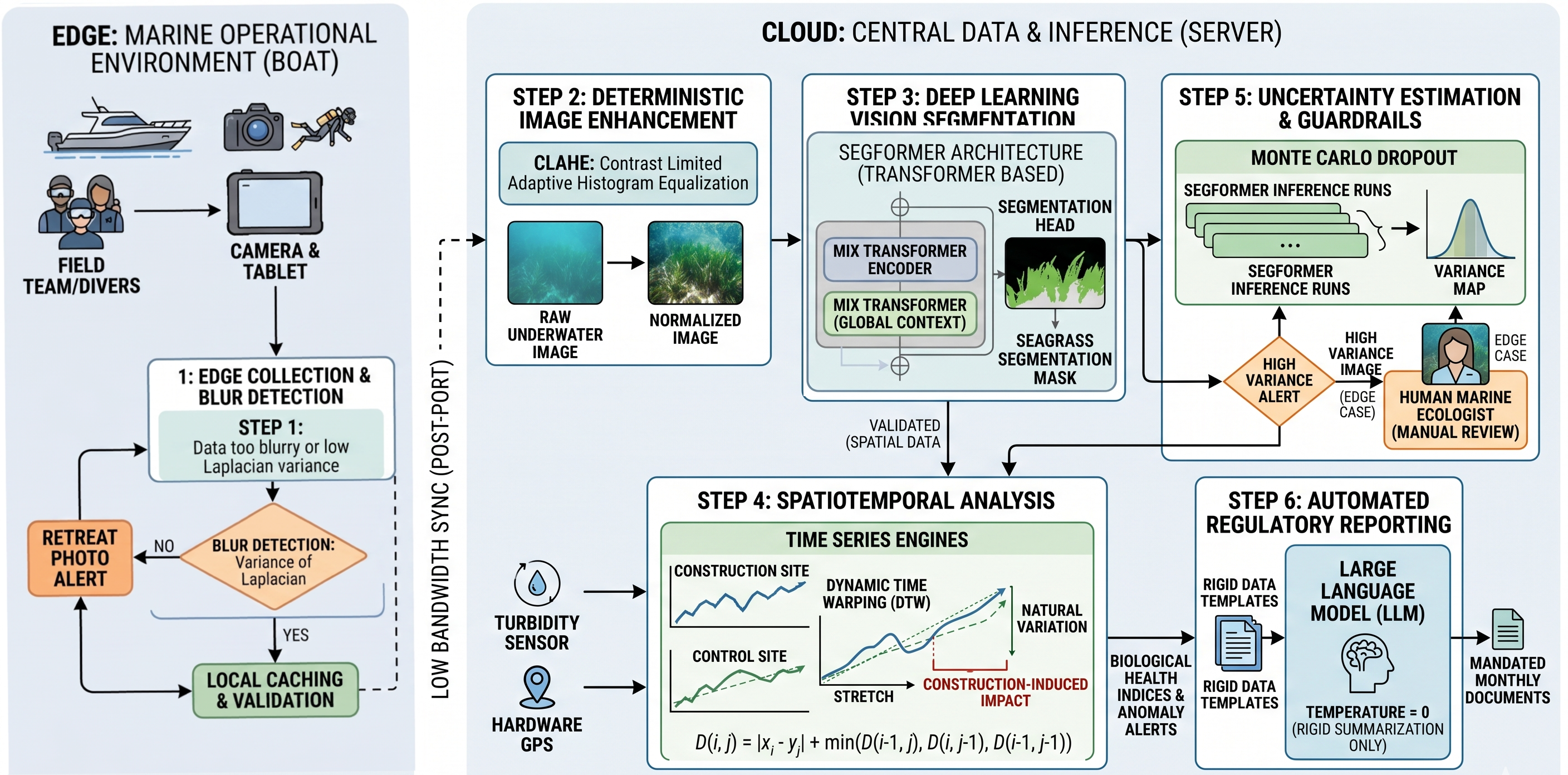

To achieve this level of auditability and solve the specific constraints of the marine environment, the workflow is broken down into six highly specific modules.

Step 1. Edge Collection and Blur Detection

The process begins the moment the divers return to the boat. Internet bandwidth on the water is extremely limited, so uploading gigabytes of useless, blurry photos to the cloud is a massive bottleneck. Field teams upload their raw data via rugged edge devices like industrial tablets. These devices run lightweight scripts computing the variance of the Laplacian across the image to measure blur. If an image falls below a hard mathematical threshold for sharpness, the tablet immediately alerts the divers to retake the photo before they leave the GPS coordinate.

Step 2. Deterministic Image Enhancement

Once uploaded to the central server, the raw images pass through an enhancement module. This step uses classic computer vision techniques, specifically Contrast Limited Adaptive Histogram Equalization (CLAHE), to correct severe underwater color shifts and normalize lighting. I explicitly chose a deterministic method over a deep learning approach like a GAN (Generative Adversarial Network). Generative models are known to hallucinate. If we use AI to clean the images, we risk the algorithm accidentally painting fake, healthy green seagrass over a dead patch. That would completely destroy the scientific integrity of the data. CLAHE relies purely on math to redistribute existing pixel intensities, ensuring we never invent data.

Step 3. Deep Learning Vision Segmentation (SegFormer)

The scientifically corrected data then passes into the core vision module to separate the living biology from the background sand. For this task, traditional Convolutional Neural Networks (CNNs) like U-Net often struggle. CNNs look at local pixel neighborhoods, meaning they can easily confuse a murky patch of water with a muddy seabed. Instead, I selected a SegFormer architecture. SegFormer is a Transformer based model. It uses self attention mechanisms to establish a global context of the entire image simultaneously. This allows the model to identify sparse, disconnected seagrass patches in murky water because it understands the broader visual scene, not just the pixels immediately next to each other.

Step 4. Spatiotemporal Analysis (Dynamic Time Warping)

A single segmented image is just a snapshot. To understand the ecosystem, we must aggregate this spatial data and feed it into a time series engine. Biological growth is rarely perfectly linear. A cold front might delay the natural spring growth spurt by two weeks. If we use simple linear math to compare the construction site against our pristine control site, the distance might look massive simply because the two sites are slightly out of phase. To solve this, we apply Dynamic Time Warping (DTW). DTW stretches and compresses the time axis to perfectly align the natural seasonal rhythms of the two sites. Once aligned, any remaining divergence between the two trend lines represents the actual, isolated impact of the construction project.

Step 5. Uncertainty Estimation and Guardrails

The biggest risk with deep learning is overconfidence. To ensure scientific credibility, we implement uncertainty estimation using Monte Carlo Dropout inside the SegFormer. We pass the same underwater image through the model multiple times, randomly turning off different neurons each time. If the model outputs the exact same segmentation mask every time, it is highly confident. If the outputs vary wildly, it means the model is unsure due to extreme turbidity or visual noise. The system is programmed to automatically flag these high variance images and route them to a human marine ecologist for manual review.

Step 6. Automated Regulatory Reporting

Finally, the validated quantitative data flows into a reporting engine to generate the mandated monthly documents. While we use a Large Language Model (LLM) to draft the readable text of the report, we heavily restrict it. The LLM is forced to operate within rigid data templates and is only allowed to summarize the hard numbers provided by the vision and time series modules. This strictly prevents the AI from hallucinating ecological insights, transforming our database of underwater pixels into a compliant, mathematically backed legal document.

5. The Algorithm Mechanics

Section 4 laid out the plumbing of our system. Now we need to open the hood and look at the mathematical engines running inside those pipes. I want to move away from the high level workflow and dive into the specific math and intuition behind why these exact algorithms are required to survive the physical constraints of the ocean.

Laplacian Variance and CLAHE

We need to quantify image blur mathematically before any deep learning takes place. If you recall from calculus, the first derivative measures the slope, and the second derivative measures the rate of change of that slope. In computer vision, the Laplacian operator computes this second derivative across a matrix of pixels.

A sharp edge in an underwater photograph represents a sudden, massive spike in pixel intensity. If an image is perfectly sharp, the Laplacian will output massive spikes, resulting in a high statistical variance across the image array. If the image is blurry, the color transitions are smooth, the second derivative is relatively flat, and the variance drops to near zero.

For the enhancement phase, standard histogram equalization tries to stretch the most frequent pixel intensities to improve contrast. But in turbid water, the most frequent pixels are usually just suspended mud. Stretching them globally amplifies the noise. CLAHE divides the image into an 8x8 grid and performs this stretching locally. The algorithm then strictly clips the histogram at a predefined limit to ensure we do not artificially brighten the background noise.

SegFormer

We moved away from standard convolutional architectures because of the Receptive Field problem. A convolutional filter slides across an image looking at a tiny grid of pixels at a time. It lacks macro level context.

SegFormer throws out the sliding window. It uses a Mix Transformer encoder that relies on self attention. Instead of looking at neighboring pixels, self attention mathematically scores how every single pixel in the image relates to every other pixel regardless of physical distance.

If there is a patch of seagrass in the bottom left corner and another patch in the top right, the attention mechanism links them. It builds a global matrix of visual relationships immediately. This prevents the model from being fooled by localized pockets of murky water because it is making decisions based on the entire scene at once.

Dynamic Time Warping

Time series forecasting often assumes rigid intervals. If you compare two arrays of data using simple Euclidean math, the data point from May 1st at the project site is compared directly to May 1st at the control site. But biology does not care about our calendars.

Dynamic Time Warping solves this by treating time as an elastic variable. It builds a massive matrix where the rows are the time steps of the control site and the columns are the time steps of the project site. The algorithm then hunts for the absolute cheapest mathematical path from the bottom left of the matrix to the top right.

This recursive function allows the path to stall on a single column or skip across a row. It physically warps the arrays until the peaks and valleys align, effectively factoring out the noise of natural phase shifts.

Monte Carlo Dropout

A standard neural network provides a point estimate. It spits out one answer and provides zero mathematical context on how confident it feels about that answer. To fix this, we need a Bayesian approach to approximate our uncertainty.

Dropout is typically just a training trick where we randomly zero out network weights to force the model to learn redundant pathways. By leaving Dropout turned on during inference, we force the model to predict the exact same image under dozens of slightly different network configurations.

If the model truly learned the underlying biological pattern, it will output the exact same seagrass boundary every time, resulting in a variance of zero. If it is just guessing based on a blurry shape, the outputs will scatter wildly across the iterations, and the variance will spike.

Large Language Models

The final hurdle is text generation. Deep learning models generate text by outputting a probability distribution over an entire vocabulary of words. The temperature parameter scales the logits before they are passed through the softmax function.

A high temperature flattens the probability distribution, allowing the model to pick lower probability words. This creates creative and highly varied text. By forcing the temperature to absolute zero, we mathematically force the model to act greedily. It will only ever select the absolute highest probability word at every single step. This strips away all creativity and turns the LLM into a rigid, highly predictable summarization calculator.

6. Validation Framework

An AI model is a massive liability if the stakeholders do not completely trust its outputs. Environmental regulators will never blindly accept a spreadsheet generated by a neural network. We have to mathematically and procedurally prove that our architecture reflects the actual biology of the ocean floor.

Because we established our uncertainty thresholds using the dropout techniques detailed in the previous section, we know exactly when the model is mathematically confused. Those high variance edge cases are immediately isolated and routed to a senior marine ecologist. This human in the loop workflow guarantees that the algorithm is never permitted to guess during ambiguous or highly turbid conditions.

For the confident predictions, we mandate a strict shadow deployment phase. For the first three months of the construction project, the AI system runs entirely in parallel with traditional manual point intercept surveys. Divers manually count and measure seagrass coverage using physical grids on the seabed. We then measure the statistical divergence between this human ground truth and our automated outputs. We only transition to a fully automated pipeline when the model consistently matches or exceeds the accuracy of the manual surveys across all ecological indices.

Furthermore, we anchor our impact analysis against extensive historical baselines. We do not just compare the active project site to the current control site. We validate the current time series trends against years of pre construction survey data. This proves to the regulators that our baseline assumptions regarding natural seasonal cycles hold true regardless of the mathematical transformations we apply.

7. Deployment Architecture and Future Scope

Building the model is only half the battle. Deploying a complex AI pipeline into a hostile physical environment requires a highly pragmatic hybrid infrastructure.

We strictly divide the compute load between the edge and the cloud. Internet access on the open water is notoriously unreliable and expensive. The rugged tablets on the boat handle the immediate Laplacian variance checks and local data caching. By keeping this quality assurance entirely local, we prevent field teams from wasting hours trying to upload blurry or unusable data over a weak cellular connection. Once the boat returns to port and connects to stable broadband, the validated data syncs to the cloud. The cloud servers then handle the heavy deep learning inference and massive time series matrices. This approach keeps edge hardware costs minimal while guaranteeing infinite scalability across multiple simultaneous coastal projects.

Data sensitivity represents another silent constraint in environmental engineering. While the biological health data is often public record, the exact GPS coordinates of dredging ships and proprietary construction schedules are highly confidential corporate data. The cloud architecture must rigidly silo the environmental outputs from the operational inputs to satisfy the security requirements of the construction firm.

Looking ahead, the ultimate goal is to evolve this pipeline from a reactive monitoring tool into a proactive forecasting engine. Over the two year project lifecycle, we will accumulate a massive dataset correlating exact dredging volumes and sediment displacement with our calculated ecological health indices. By training a secondary predictive model on this combined spatiotemporal data, we can forecast biological stress before the grass actually dies. This shift empowers construction managers to dynamically adjust their dredging schedules and actively protect the marine environment rather than just measuring the damage after the fact.
